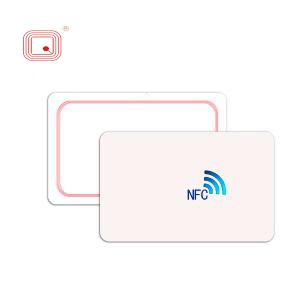

NFC card

Product name: NFC card
Chip: NXP-Ntag 213/215/216
Frequency: 13.56Mhz
Material: PVC, PET, Coated paper
Size: Customize, Printing: CMYK Offset Printing

Custom PVC NFC colored Card


Description

NTAG216 is one of the most common high frequency chip, which has many applications such as Public transportation, Access control, Event ticketing, Gaming & identity, etc…
NTAG216 has been developed by NXP Semiconductors as standard NFC tag ICs to be used in mass market applications such as retail, gaming and consumer electronics, in combination with NFC devices or NFC compliant Proximity Coupling Devices. NTAG216 is designed to fully comply to NFC Forum Type 2 Tagand ISO/IEC 14443 Type A specifications.
NTAG216 Chips have an available capacity of 888 bytes and are compatible with every NFC device, because are NDEF formatted (NFC Data Exchange Format).Due to their huge memory, NTAG216 chips are very useful for V-Card contacts, because they can contain more than 10 fields.
The NFC card is a typical type of RFID cards, which is widely used in most of prepaid occasions,like retails, bars, hotels and enterprise.All our NFC cards are tested before shipping,we make sure our NFC cards are new, empty and rewritable.

Chip Features:

  • Contactless transmission of data and supply energy

  • Operating frequency: 13.56 MHz

  • Data transfer: 106 kbit/s

  • Data integrity of 16-bit CRC, parity, bit coding, bit counting

  • Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)

  • 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)

  • UID ASCII mirror for automatic serialization NDEF messages

  • ECC based originality signature

  • Fast read command

  • True anticollision

  • 924 organized in 231 pages with 4 bytes per page

  • 888 bytes freely available user Read/Write area (222 pages)

  • 4 bytes initialized capability container with one time programmable access bits

  • Field programmable read-only locking function per page for the first 16 pages

  • Configurable password protection with optional limit of unsuccessful attempts

  • Anti-tearing support for capability container (CC) and lock bits

  • ECC supported originality check

  • Data retention time of 10 years

  • Write endurance 100.000 cycles


 Product Details:

Type:

NXP NTAG 216 card

Material:

PVC, PET, ABS Paper etc

Size:

85.6 mm*54 mm(ISO 7816) or customization

Printings:

Offset printing, silk-screen printing

Surface:

Glossy/matted/frostedr

Standards:

ISO/IEC 14443-A

Operating Distance:

Up to 100mm

Packaging:

200pcs / box, 5000pcs / carton



Customized craft:

Anti-metal layer, 3M adhere tape
Number printing(Jet dot,Thermo transfer,Laser engrave)
Barcode printing(Code 39, code 128, EAN13 , EAN 8,QR,etc)
Scratch off panel
Magnetic Stripe(300oe, 2750oe, 4000oe)
Embossing
Photo Personalisation,Hologram,Security Printing,Encoding
Hole puch
Hot stamp (gold/silver)
Laser silver/gold
Overlay Foil,Signature Panel ,Name Personalisation


 Application:

  • Cashless/Contactless Payment

  • Short Range Access Control

  • Mobile Devices Startup

  • Event Ticketing

  • Smart Poster

  • Vcard
