Product name: RFID Laundry Tag
Model No. : L-Tag05
Frequency：LF,HF,UHF
Dimension: 20 mm/24 mm/26 mm
Thickness: 2.5 mm
Material: PPS
Color: Black,Gray,Blue
Applications: Laundry Application, Property Tracking, Item Identification, Process Flow Improvement
2.5mm Passive washable waterproof PPS RFID laundry tag for textile tracking
Description:
RFID Laundry tags are the most robust and cost effective textile tracking RFID tags in the world.
These RFID Laundry Tags are ideal for tracking linens, uniforms, and other garments, which is made of fabric, or PPS, or silicone for harsh environment.They can be designed to meet the tracking requirements of the laundry industry in terms of shape, robustness and ease of fixation.

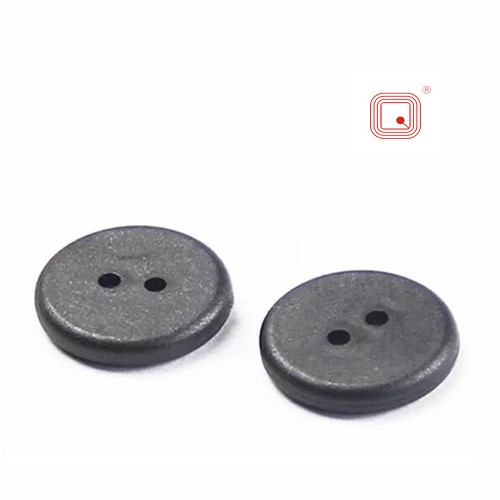

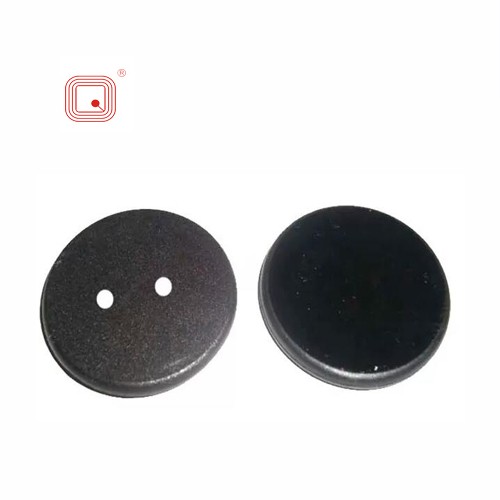

LF / HF button hole rfid laundry tag is suitable for use in any RFID hotel, spa, retirement home, sports club laundry and linen management application. By using these laundry tags, RFID laundry tag allows the tracking and management of clothes and linen such as number of times washed etc.The PPS laundry tag is the most common one of the RFID laundry tags, which is small size and shaped in button. It’s twice injection moulding design and suitable for harsh laundry environment such as press type laundry machine, dry cleaning and ironing.
RFID Laundry tag has been specially designed for applcaitions requring a rugged transaponder that can withstand harsh environment , this tag meets all requirements in terms of heat, pressure and chemical resistance as needed in applictaion of RFID tracking of lanundry industy
Key Features:
Waterproof
Designed for harsh environment.
Twice injection moulding technics.
Simultaneous Identification of Tags
Exceptional temperature performance, oil, chemic solutions.
Different dimensions option allow for optimum ratio of size.
Anti-Vibration,and High Temperature Resistance.
Product Specifications:
| Product Name: | PPS Laundry Tag |
| Material: | PPS |
| Dimension: | Dia20mm(LF,HF) Dia22mm with two holes(LF,HF) Dia26mm with two holes(LF,HF,UHF) or customization |
| Thickness: | 2.5mm |
| Color: | Black,Blue,Gray |
| Weight: | 1.8g |
| Chip Option: | LF(125KHz):TK4100,EM4200,EM4305,T5577etc. HF(13.56MHz):Mifare 1K S50,Mifare 4K S70,FM1108,I CODE SLI,I CODE SLIX,I CODE SLIX-S,NTAG 213,NTAG 215,Mifare Ultralight C,etc. UHF(840~960MHz):Alien H3/H4,Monza 4/5,U CODE 7 |
| Frequency: | 125KHz(LF),13.56MHz(HF),840~960MHz(UHF) |
| Tested Reading Range: | 3~10cm(LF) 1~50cm(HF) 50~150cm(UHF) Distance varying upon the test reader |
| IP Rating: | IP65 (condition: water pressure 45bar, 10h) |
| Working Temperature: | +25°C to 180°C(Safe), +220°C(50 Hours), +260°C( 30 Second) |
| Mechanical Impact: | ISO/IEC 68.2.27 (100g, 6ms, 6axis, 20 times per axis) |
| Mechanical Stability: | axial/radial compressive strength: 1000N/500N (10 seconds, static) Lsostatic pressure: 45 bar (10 hours) |
| Washable Time: | More than 100 times |
| Operating Temperature: | -30ºC to +200ºC |
| Coding: | Chip Encoding available |
| Optional Crafts: | Customized Logo printing and Laser engrave number printing |
| Application: | Laundry Application,Property Tracking,Item Identification,Process Flow Improvement |
| Warranty: | 1 year |
