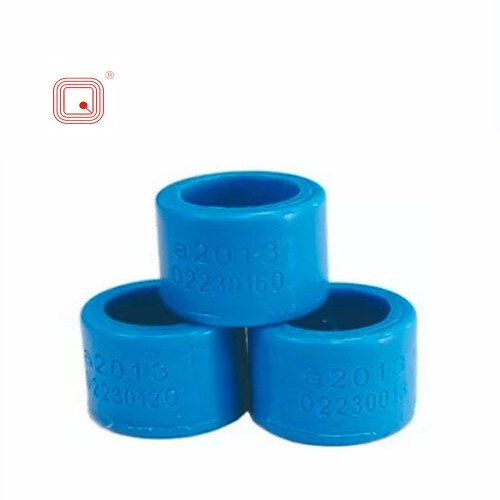

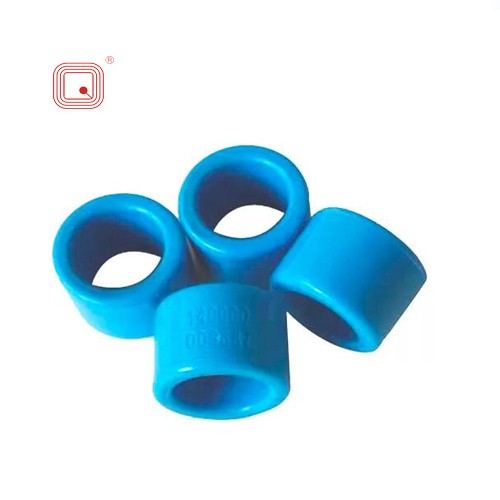

Product name: Pigeon Chicken Foot Tag
Model No. : Animal foot tag-02
Frequency：860-960 MHz
Size: Φ30*5mm(Inner diameter: 20mm)
Material: ABS
Color: Blue, red, yellow, green etc
Applications: Laundry Application, Property Tracking, Item Identification, Process Flow Improvement
Plastic Livestock Foot Ring UHF 860-960 MHz RFID Tags Labels
Description
This UHF livestock foot ring RFID tag is specially designed for tracking poultry and fowl (chickens, ducks, geese, pigeons). It is also widely used in planting, breeding, production, epidemic prevention and sales of circulation food traceability security control. Product appearance and color can be customized according to customers’ requirements.
Specifications
| Antenna dimension | 45.5X8.3mm(±0.2) |
| Final dimension | 21X15mm(core diameter 14mm)±0.5mm |
| Surface Material | Food-grade plastic shell |
| Characteristics | Ring Label, Surface of Laser Series Number(color, Blue, Green, White, Black optional) |
| Operating Frequency | 860MHZ to 960MHZ |
| Supported Protocol | ISO 18000-6C |
| Chip IC | Impinj Monza 4QT(Monza 4D/4E optional) |
| Memory | TID:96bit |
| EPC: Public: 96bit | |
| EPC_Private: 128bit | |
| USER:512bit | |
| Operating Mode | Inventory, Read or Write |
| Reading Distance | ≥1M(Fixed Reader) |
| Programming Cycle | 100,000 cycles |
| Personalized Coding | Multiple data programming service of chip & surface encoding(online or offline both); Supporting personalized key code |
| Product Attribute | UV Protection, Waterproof, Anti-corrosion, anti-Pecking, Resistance to Low and High Temperature, IP65 protection. |
| Environmental Parameter | |
| Operating Temperature | -25°C to 75°C |
| Storage Temperature | 0°C to 25°C |
| Packing | |
| Box/Number | 100pcs(According to Actual Demand) |
| Packing Material | Blister Box +Paper Carton/box |
Package
100pcs per bag;1000pcs/ ctn
Our Services
1. Warranty: 1 years
