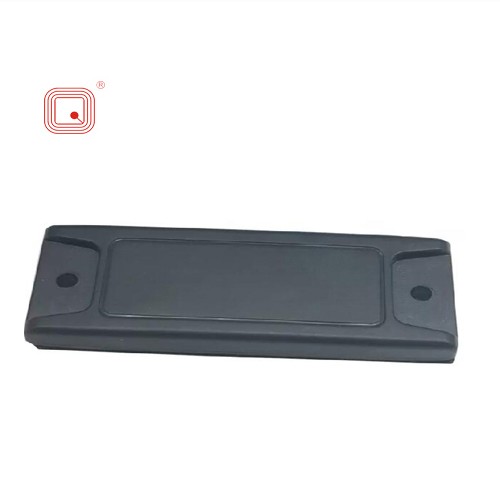

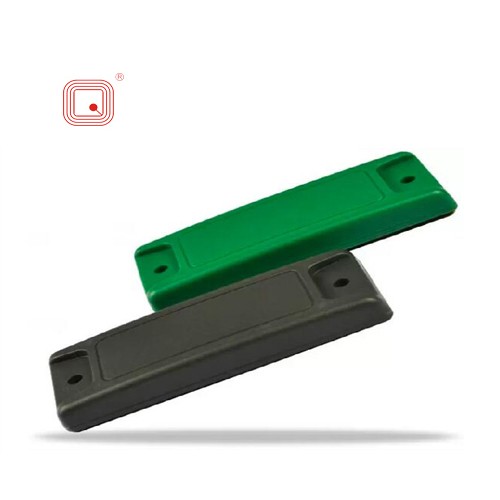

Product name: Anti Metal Tag
Model No. : Metal-mount tag-02
Frequency：860-960 MHz (UHF)
Size: 80*30*9.5 mm
Material: ABS
Color: Black Or Grey,
Applications: Logistic & Asset Management
UHF 860~960 MHz ABS long distance RFID on-metal tag for asset management
Description
When you're mounting RFID tags on metal surfaces or metal products, you should be aware that if you use non metal mount RFID tags, your system will not function as desired as the metal will detune any passive RFID tag that is not designed to be placed on metal. Using tags that are specifically calibrated to the materials you need to track makes reading, tracking, and inventorying them easier and provides for greater read range. Metal mount RFID tags are typically rugged, difficult to damage, and easy to weld, screw or otherwise attach.
Features
Rugged tag, can be applied in a harsh environment
Can be mounted by adhesive or fixed by screws
Waterproof, dustproof, durable
Can encapsulate different frequency chips
Specifications
| Product Name | RFID Anti Metal tags |
| Packing Material | ABS |
| Dimension | T8SAB: 80* 30* 9.5±0.2mm |
| Weight | T8SAB: 21.7±0.2g |
| Frequency | UHF |
| Chip | UHF Alien H3/ Impinj M4QT,other chip customizable |
| Reading distance | ≥5.5M(using 9dbi antenna and 1.0W transmitting power) |
| Working Temperature: | -10～100℃ |
| Color | Black or grey,other color customizable |
| Application | Logistic & Asset Management |
Package
20 pcs/bag,2000 pcs/ carton
