Inventory Management Steel Seal UHF HF RFID Tags Labels

Inventory Management Steel Seal UHF HF RFID Tags Labels

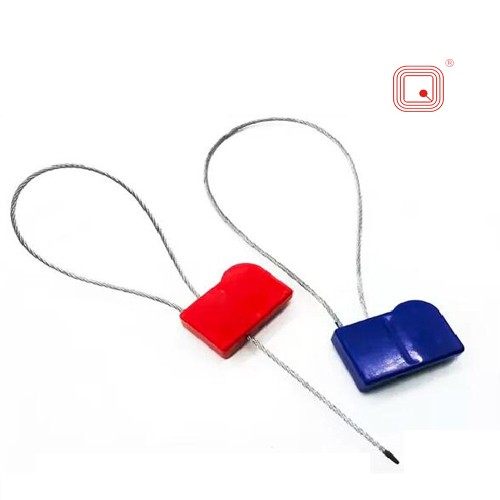

RFID steel seal tag for container / equipment / inventory management

Description

RFID seal also called RFID e seal, is a radio frequency device that transmits container information when interrogated by an RFID reader.

This RFID Steel Seal Tag is made of robust ABS with a long steel wire rope for indoor and outdoor application environment. It contains a pocket,which can be encapsulated with LF or HF antenna.These types of tags are available in many frequencies that include HF, UHF
It is widelt used in various applications, including service & calibration, logistics, asset tracking and cable management. The durable seal tag design also makes it easy to permanently install and provides a visual proof of tampering

Features

• Plastic seal tags are resistance to chemical, anti-corrosion, anti-flaming, protect the seal lock perfectly

• One time use with the anti-stripping buckle device, suitable for prevention of thievery and security seals for containers.

• Easy to fasten

• Durable, Highly visible, waterproof, Anti-corrosion

• Faster data collection

Specifications

• Protocol: 14443A | ISO18000-6C

• Reading Distance: 50CM

• Chip Type: NTAG 213 | Monza 4D,4E,4QT | Alien H3

• Operating Frequency: 13.56 MHz | 860MHz – 960MHz

• Size: 36mm*23mm*11mm + 280mm  Diameter: 1.8mm

• IC write endurance: 100,000

• Material: ABS + Steel reinforced

• IP 68

• Data retention: 10years

• Environmental Specification: 1>Recommended: -25℃ to +80℃ 2> Operating Temp: -25℃ to +120℃

Function of RFID Seal

The RFID container seals allow a quick read no matter the package or container is open, closed, or has been tampered with. The electronic RFID seals for containers can contain data identifying the cargo, it’s a nice RFID tag for truck, and other information to help increase efficiency and enhance security. Fully disposable and environmental friendly as it contains no battery. Plays an important role of rfid technology in logistics.

How does electronic seal make of

RFID Seal also calls E-seal, made of RFID chip, ABS coat, and steel string.
The chip inside: copper wire or dry inlay
Copper wire makes it more durable and stable, even shaking there is no influence for the signal transfer, also the reading distance can be longer.
Dry Inlay: use glue stick the inlay inside.
String: iron or steel
Iron: it’s easy to be rusting outside the door or moist place.
Steel: looks good than iron, will not rust

Applications:

• Inventory management

• Asset tracking

• Warehouse management

Our Services

1. Warranty: 1 years
