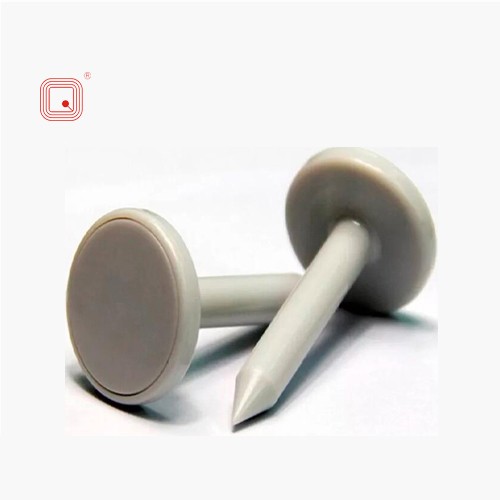

Tree Identification Passive 13.56MHz NTAG213 ABS Nail Tags

Product name: Tree Nail RFID Tags
Model No. : Nail tags-02
Frequency: 13.56 MHz
Size: 34*23*7 Mm
Applications: Tree Identification
Material: ABS

Tree Identification Passive 13.56MHz NTAG213 ABS Nail Tags



Tree identification white passive 13.56MHz NTAG213 ABS nail tags



Description

RFID nail tag as a new application shape RFID tag, encapsulated by special plastic materials and chip coils that can be nailed into various wooden objects. With waterproof and anti-chemical corrosion effect. RFID nail tags are well applied to forestry (tree) management, trash management, furniture, wood identification, ect

RFID tree nail tag for trees can be used in large product of various trees.We can adjust the tag dimensions according to your request.



Tree Identification Passive 13.56MHz NTAG213 ABS Nail Tags 0



Specifications

Production Name

Tree Identification white passive 13.56MHz NTAG213 ABS nail Tags

MaterialABS
Size

34*23*7 mm

ProtocolISO 14443A
Frequency13.56MHz
ChipNTAG213
Memory144Byte
Color option

White(other colors please contact us)r

Reading Distance1-10cm(depend on reader)
Vibration

IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axis, 2.5 h]

ShockIEC 68.2.29 [40 g, 18 ms, 6 axis, 2000 times]
Storage Temperature-13° to +185° F (-25° to +85° C), 1000 h
Operating Temperature

 -13 ° to + 185 ° F (-25 ° to + 85 ° C)

Weight1.25g



Why use RFID Nail Tag

RFID tree tag is an RFID traceable identification device for trees and wood assortments.

Applicable to a variety of non-metallic items management, security inspection. What’s more, packaging logo, vehicle identification, park management, tree management, and other asset identification management system.



The benefits of RFID nail in tree growth:

Fast, secure installation – RFID Nail tags are easily driven into place, and are nearly impossible to remove.

Reliability – high resistance to moisture, thermal fluctuation, vibration, and shock. Can be operated in wide temperature ranges. Suitable for being mounted in the tree and wooden.

Recording– Record all information from sapling to towering trees.

Tracking– Furniture factory can know the wood from which place is the best choice.



RFID Tree Tags Applications in Agriculture

RFID-enable Nail Tag for ancient tree tracking

The ancient and famous trees are implanted with RFID electronic chips. First, the information about the trees’ age, subject, and survival status are input into the chip.

RFID nail made of plastic will not adversely affect the health of the trees, and no battery will be installed in the chip.

After implantation, the chip will be activated by an RFID data collector to read the trees’ information stored in the chip. Once the tree is sick, the manager can see at a glance the previous information on the RFID nail tag.

Such as when to water, what fertilizer has been given, what disease has occurred, whether to move house, etc.

We can use RFID nail for trees, to know how much the tree shakes when the wind blows, and if it does, it needs to support the tree in advance.



Garden tracking & idenfication with RFID Nails

The gardener through the RFID device to read the trees’ information, and send the real-time feedback to the background system through the mobile Internet. If a problem is found, the software will alert the operator by way of a prompt box, and the problem will be directly located in the map to facilitate timely monitoring by business personnel.



The system consists of three parts, namely monitoring management system, RFID handheld devices, RFID nail tags.



Hand hold terminal is a professional application software deployed in the RFID hand-held equipment. Through the equipment, the patrol staff can scan the information of the RFID nails hidden in the trees within 50 cm.



Through the reporting function of the mobile application, the scene images and problems are sent to the command center immediately.





Tree Identification Passive 13.56MHz NTAG213 ABS Nail Tags 1



Package



Standard package:

100pcs/bag,then 1000/2000/2500/5000 pcs per carton.

Tree Identification Passive 13.56MHz NTAG213 ABS Nail Tags 2

Our Services

1. Warranty: 1 years
2. Free Replacement: If have inaccurate card within order, Jianhe Smart Card will provide free replacements.


Our Advantage:

1. PVC material is safety and environmental protection
2. Best printing machine: Germany Heidelberg four-color printer, exquisite printing quality.
3. Anti scratch, more durable with overlay and protect film.
