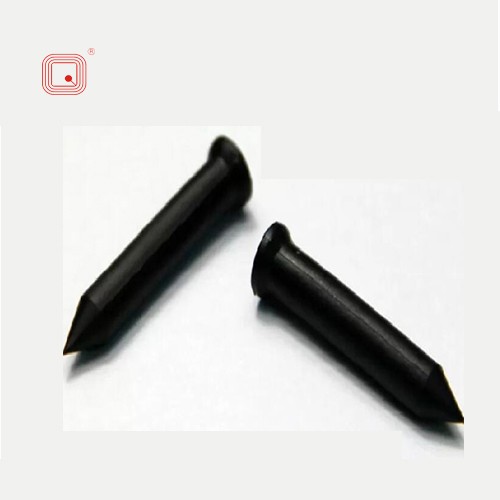

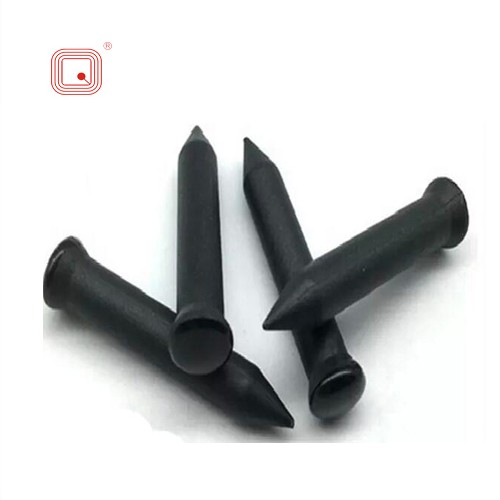

ABS black plastic LF / HF RFID tree nail tags for wood tracking

Description

RFID Nail Tags are an RFID tag in the shape of a nail. They are strong enough to be hammered into wood or other soft materials.

MoreRFID is a custom smart card & RFID products manufacturing expert. Our company’s nail tags can be nailed into any type of wood such as pallets, trees, etc.

We can customize any chips packaged in RFID nail tags such as: TK4100, EM4100, EM4102, FM1108, I code 2, S50, hitag 2, EM4305, etc.

The recommended RFID nail tags installation method is as follows:

For driving surface drilling, it is recommended to use a drill size not less than 5 * 33mm, driving with a rubber mallet. They are suitable for installation in concrete products, prefabricated parts, plastic products, wood and other non-metallic items.

Features

• ID unique, not replicable, high security

• Chip can read and write more than 100,000 times, the service life of up to 10 years

• Flexible storage architecture for data encryption and permanent locking

Specifications

• Operating Frequency: 13.56 MHz /125KHz

• Protocol: ISO11784/85 | ISO18000-2 | ISO14443 A/B | ISO15693 | ISO/IEC18000-3 | ISO/IEC18092

• Reading Distance: 5CM

• Chip Type: EM4100,EM4102,EM4305,TK4100,T5557,TI2K,ICODE2, Higgs 3

• Size: 29*8*7 mm

• IC write endurance: 100,000

• Material: ABS

• Data retention: 10years

• IP67

• Environmental Specification: 1>Recommended: -55℃ to +100℃ 2> Operating Temp: -40℃ to +85℃

• Application: power equipment inspection, wire pole inspection of iron tower, elevator inspection, tray management, pressure vessel, cylinder steam bottle, printing industrial, etc.

Package

Standard package:

100pcs/bag,then 1000/2000/2500/5000 pcs per carton.

Our Services

1. Warranty: 1 years
2. Free Replacement: If have inaccurate card within order, Jianhe Smart Card will provide free replacements.

Our Advantage:

1. PVC material is safety and environmental protection
2. Best printing machine: Germany Heidelberg four-color printer, exquisite printing quality.
3. Anti scratch, more durable with overlay and protect film.
