Product name: Cattle Ear Tag
Model No. : Ear Tag 02
Frequency：860-960 MHz (UHF)
Size: Diameter 27mm (± 0.2mm),32mm(± 0.2mm)
Material: Thermoplastic Polyurethane(TPU)
Color: Yellow Or Customization
Applications: Tracking And Identification For Livestock,mainly for Cattle
Animal Tracking TPU UHF round animal ear tag with U code 8 chip for animal tracking
Description:
A custom animal ear tag is a plastic or metal object used for identification of domestic livestock and other animals. When this tag uses Radio Frequency Identification Device (RFID) technology, it is referred to as an electronic ear tag.
The electronic ear tag can record the ear number of each animal together with its variety, source, production performance, immune status, health status, and livestock owner. Once the epidemic situation and animal product quality problems occur, it can be traced (traced) Its source, clarify responsibilities and plug loopholes.It works on UHF (860-960 MHz) frequency and is fully compliant with ISO18000 6C standard protocol. The tag’s EPC compliance enables excellent performance in applications .The electronic ear tag adopts an integrated design, which is convenient for ready-made operation and wear. The main body of the product is made of non-toxic, non-odor, non-irritating soft and durable TPU (polyurethane) material to ensure that the product is suitable for use in different environments. The imported chips are stable and reliableJianhe is a leading manufacturer and supplier of RFID Animal Tag in China
Features:
Passive activated chip
Surface laser etching number mark
Can withstand 70 ℃ blister for 20 minutes
TPU material to prevent animals from long-term exposure to allergic reactions
Can withstand the instantaneous high temperature of common domestic slaughtering corona equipment
After matching with the matching earrings, the shedding rate is low and the application is easy
Strict disinfection treatment at the factory
Special design to prevent ear tag dropping out.
Strong durability to survive from tough environment.
Long reading distance.

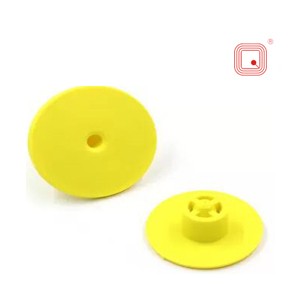

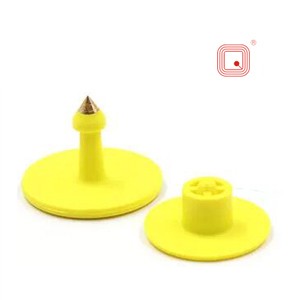

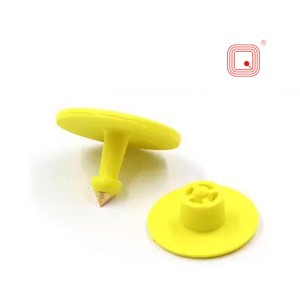

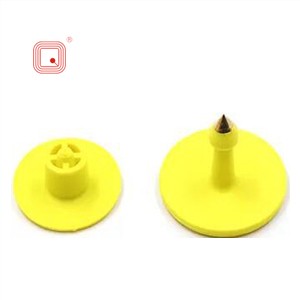

Detailed image:
Product Specifications:
Material | |
Material | Polyurethane(TPU) |
Craft | Secondary injection molding |
Colour | yellow |
Size | Diameter 27mm (± 0.2mm) |
Weight | 4.5g |
Environmental conditions | |
Working temperature | -20℃~+65℃(No icing) |
Storage ambient temperature | -30℃~+75℃(No icing) |
Temperature resistance | +100℃(Hot water) 1 hour 20 cycles |
Chip parameter | |
Chip | UCODE8 |
Work mode | Read and write |
Frequency | 860~960MHZ |
Protocol | ISO18000-6C |
Data retention time | > 10 years 55℃ (131℉) |
Chip lifetime | >100,000times 25℃(77℉) |
Power supply | Passive (no battery) |
Read distance | 0.1-1M(depends on reader and environment) |
Other | |
Chemical resistance | Meet IP67 standard, waterproof, sun-proof, anti-soaking |
Package | 100pcs/bag |
Application:
Animal Tracking
Livestock management
Cattle Management and Tracking (Pig,Cow, Buffalo, Horse)
Prevent Animal group of infectious disease
