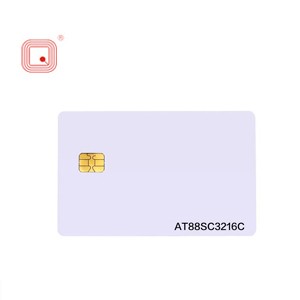

AT88SC3216C Contact Card

Full Color Offset Printing AT88SC3216C Contact IC Cards

White / blank/ full color offset printing contact AT88SC3216C PVC card

Description:

The AT88SC3216C member of the CryptoMemory® family is a high-performance secure memory providing 2 Kbits of user memory with advanced security and cryptographic features built in. The user memory is divided into four 64-byte zones, each of which may be individually set with different security access rights or effectively combined together to provide space for 1 to 4 data files.In the case of a contact-type IC chip card, a cavity is milled into a conventional plastic card and then the corresponding chip is inserted with an adhesive. To do this, the plastic card must comply with ISO standard ISO-7816 and have a minimum thickness of 0.8mm or 800μ. Simple memory chips or cryptographic processor chips for secure applications can be used.

Product Specification:

• Card size: 85.6*54 mm (standard), or according to your request.

• Thickness:0.8±0.04 mm

• Material: PVC, PET, ABS etc for optional

• Surface: Glossy/Matte/Frosted/Transparent

• Color:White / pre printed

• Design: Customer provides high resolution artwork in AI, PSD,CDR, PDF format, or custom

• Features:Water-proof,high temperature resistance

Customization Options:

• Full color offset printing

• Silk-screen printing

• Silver/Gold silk-screen printing background

• Magnetic Stripe Option: 300oe, 2750oe, 4000oe

• Numbering

• Barcode printing

• Signature panel

• Embossing

Chip Parameters:

• 4-Kbit (512-byte) EEPROM User Memory

           Four 128-byte (1-Kbit) Zones
           Self-timed Write Cycle
           Single Byte or 16-byte Page Write Mode

           Programmable Access Rights for Each Zone

• 2-Kbit Configuration Zone

           37-byte OTP Area for User-defined Codes
           160-byte Area for User-defined Keys and Passwords

• High Security Features

           64-bit Mutual Authentication Protocol (Under license of ELVA)
           Encrypted Checksum
           Stream Encryption
           Four Key Sets for Authentication and Encryption
           Eight Sets of Two 24-bit Passwords
           Anti-tearing Function
           Voltage and Frequency Monitor

• Smart Card Features

           ISO 7816 Class A (5V) or Class B (3V) Operation
           ISO 7816-3 Asynchronous T = 0 Protocol (Gemplus® Patent) *
           Multiple Zones, Key Sets and Passwords for Multi-application Use
           Synchronous 2-wire Serial Interface for Faster Device Initialization *

           Programmable 8-byte Answer-To-Reset Register
           ISO 7816-2 Compliant Modules

• Embedded Application Features

          Low Voltage Operation: 2.7V to 5.5V
          Secure Nonvolatile Storage for Sensitive System or User Information
          2-wire Serial Interface
         1.0 MHz Compatibility for Fast Operation
         Standard 8-lead Plastic Packages, Green Compliant (exceeds RoHS)
         Same Pinout as 2-wire Serial EEPROMs

• High Reliability

         Endurance: 100,000 Cycles
         Data Retention: 10 years

         ESD Protection: 4,000V min

Application:

• Banking Transport Government Identity Cards

• Passports Entitlement Cards

• Health Cards

• Physical Access Control

• IT access control
