AT88SC1608 Contact Card

Pre Printed PVC Smart AT88SC1608 Contact IC Cards

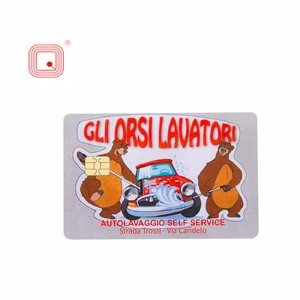

Pre printed PVC contact smart card with AT88SC1608 chip for banks


Description

The AT88SC1608 provides 17,408 bits of serial EEPROM memory organized as one configuration zone of 128 bytes and eight user zones of 256 bytes each. This device is optimized as a “secure memory” for the smart card market, secure identification for electronic data transfer, or components in a system, without the requirement of an internal microprocessor.

The embedded authentication protocol allows the memory and the host to authenticate each other. When this device is used with a host which incorporates a microcontroller (e.g., AT89C51, AT89C2051, AT90S1200), the system provides an “anti-wiretapping” configuration. The device and the host exchange “challenges” issued from a random generator and verify their values through a specific cryptographic function included in each part. When both agree on the same result, the access to the memory is permitted.

The AT88SC series card widely used in  Identity Certification, Banks, Telecom, Transport Cards, and Parking Management.


Product Parameters



Key features

• One 128 x 8 (1K bit) Configuration Zone

• Eight 256 x 8 (16K bits) User Zones

• Low Voltage Operation: 2.7V to 5.5V

• Two-wire Serial Interface

• 16-byte Page Write Mode

• Self-timed Write Cycle (10 ms max)

• Answer-to-Reset Register

• High Security Memory Including Anti-wiretapping

          64-bit Authentication Protocol (under exclusive patent license from ELVA)

          Authentication Attempts Counter

          Eight Sets of Two 24-bit Passwords

          Specific Passwords for Read and Write

          Sixteen Password Attempts Counters

          Selectable Access Rights by Zone

• ISO Compliant Packaging

• High Reliability

          Endurance: 100,000 Cycles

          Data Retention: 100 Years

          ESD Protection: 4,000V (min)

Package


To make sure cards can be delivered without any damage,we provide the most solid and the safest packaging.
