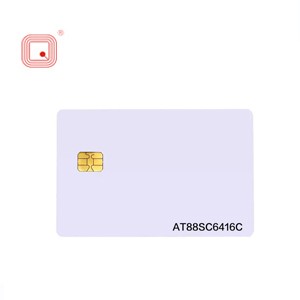

AT88SC6416C Contact Card

Full Color CR80 Memory AT88SC6416C Contact IC Cards

IC memory card with AT88SC6416C chip for Physical Access Control

Description:

The AT88SC6416C member of the CryptoMemory® family is a high-performance secure memory providing 64 Kbits of user memory with advanced security and cryptographic features built in. The user memory is divided into 16 512-byte zones, each of which may be individually set with different security access rights or effectively combined together to provide space for one to sixteen data files.

The AT88SC6416C provides high security, low cost, and ease of implementation without the need for a microprocessor operating system. The embedded cryptographic engine provides for dynamic and symmetric mutual authentication between the device and host, as well as performing stream encryption for all data and passwords exchanged between the device and host. Up to four unique key sets may be used for these operations. The AT88SC6416C offers the ability communicate with virtually any smart card reader using the asynchronous T = 0 protocol (Gemplus Patent) defined in ISO 7816-3. Communication speeds up to153,600 baud are supported by utilizing ISO 7816-3 Protocol and Parameter Selection.We supply white card and pre printed card.

Product Specification:

• Card size: 85.6*54 mm or according to your request.

• Thickness:0.8±0.04 mm

• Material: PVC, PET, ABS for optional

• Surface: Glossy/Matte/Frosted/Transparent

• Color:White / pre printed

• Design: Customer provides high resolution artwork in AI, PSD,CDR, PDF format, or custom

• Features:Water-proof,high temperature resistance

Customization Options:

• Full color offset printing

• Silk-screen printing

• Silver/Gold silk-screen printing background

• Magnetic Stripe Option: 300oe, 2750oe, 4000oe

• Numbering

• Barcode printing

• Signature panel

• Embossing

 Chip Parameters:

• One of a family of nine devices with user memories from 1-Kbit to 1-Mbit

• 64-Kbit (8-Kbyte) EEPROM User Memory

          Sixteen 512-byte (4-Kbit) Zones
          Self-timed write cycle
          Single Byte or 128-byte Page Write Mode
          Programmable access rights for each zone

• 2-Kbit configuration zone

          37-byte OTP area for user-defined codes
         160-byte area for user-defined keys and passwords

• High security features

         64-bit mutual authentication protocol (under license of ELVA)
         Encrypted checksum
        Stream encryption
        Four key sets for authentication and encryption
        Eight sets of two 24-bit passwords
        Anti-tearing function
        Voltage and frequency monitor

• Smart card features

        ISO 7816 Class A (5V) or Class B (3V) operation
        ISO 7816-3 asynchronous T = 0 protocol (Gemplus® patent)
        Supports Protocol and Parameters Selection for Faster Operation
        Multiple zones, key sets and passwords for multi-application use
        Synchronous 2-wire serial interface for faster device initialization
        Programmable 8-byte answer-to-reset register
        ISO 7816-2 compliant modules

• Embedded application features

        Low voltage operation: 2.7V to 5.5V
       Secure nonvolatile storage for sensitive system or user information
       2-wire serial interface
       1.5 MHz Compatibility for Fast Operation
       Standard 8-lead plastic packages, green compliant (exceeds RoHS)
       Same pinout as 2-wire Serial EEPROMs

• High reliability

        Endurance: 100,000 cycles
        Data retention: 10 years
        ESD protection: 4,000V min

Application:

• Banking Transport Government Identity Cards

• Passports Entitlement Cards

• Health Cards

• Physical Access Control

• IT access control
