Contact Smart SLE4428 IC Chip Card
85.6*54 Mm PVC Contact Smart SLE4428 IC Chip Card

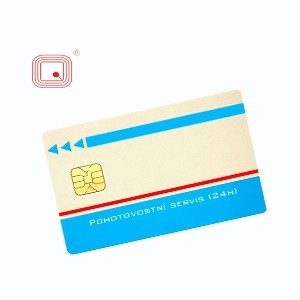

PVC contact smart card / IC chip card for access control system
Description
IC card is the short name for Integrated Circuit Card, it’s the PVC cards which insert Integrated circuit chip inside, the appearance and size all follow ISO Standard (ISO/IEC 7816, GB/T16649). The chips normally adopt Non-volatile Memory (ROM, EEPROM), protection logic circuit or even microprocessor CPU. Only IC cards which include CPU that we can call it a really smart card
Contact IC chip cards can divided into three parts: Memory Card; Smart Card which contain CPU; Supper Smart Card which have monitor and keyboard. Its advantage is huge memory, safe and easy to carry.Contact smart cards must be inserted into a smart-card reader. The reader makes contact with the card module electrical connectors that transfer data to and from the chip. This physical contact permits the transmission of data, commands and card status.
Commonly used in contact IC card chip is:SLE4428, SLE5542, FM4442, FM4428, ATMEL 24C01A/02/04/08/16/32/64/128/256...
Product Specification
Dimension:ISO CR80 Standard: 85.6 mm*54 mm
Thickness:0.8 mm or customized
Weight:6.2g +/-0.5g
Material:PVC, PET, PETG, ABS
Surface Craft:Magnetic Stripe Option: Loco 300oe/Hico 2750oe;Signature panel: Grey color / white color/ Transparent;UV Code: QR Code, Barcode(13/39/128);Thermal printing number(black/silver), Ink-Jet printing Number, Embossing number,Hole punch, Hot-stamping(Silver/Gold), silver/gold glitter
Target Application:
Bank System
Government System
Hotel System
Transportation system
Access control
Chip option
Chip Type Of Card | Memory Size | Supplier | Standard |
SLE4428 | 1K byte | Infineon | ISO7816 |
SLE5542 | 256 byte | Infineon | ISO7816 |
SLE5528 | 1K byte | Infineon | ISO7816 |
FM4442 | 256 byte | Fudan | ISO7816 |
FM4428 | 1K byte | Fudan | ISO7816 |
IS23SC4442 / GT23SC4442 | 256 byte | ISSI/GT | ISO7816 |
IS23SC4428 / GT23SC4428 | 1K byte | ISSI/GT | ISO7816 |
IS23SC1604 / GT23SC1604 | 16K bits | ISSI/GT | ISO7816 |
AT24C01 | 1K byte | Atmel | ISO7816 |
AT24C02 | 2K bits | Atmel | ISO7816 |
IS24C02 / GT24C02 | 2K bits | ISSI/GT | ISO7816 |
AT24C04 | 4K bits | Atmel | ISO7816 |
AT24C08 | 8K bits | Atmel | ISO7816 |
AT24C16 | 16K bits | Atmel | ISO7816 |
AT24C32 | 32K bits | Atmel | ISO7816 |
AT24C64 | 64K bits | Atmel | ISO7816 |
AT24C128 | 128K bits | Atmel | ISO7816 |
AT24C512 | 512K bits | Atmel | ISO7816 |
AT88SC102 | 1K bits | Atmel | ISO7816 |
AT88SC153 | 2K bits | Atmel | ISO7816 |
AT88SC0104C | 1k bits | Atmel | ISO7816 |
AT88SC0204C | 2K bits | Atmel | ISO7816 |
AT88SC0404C | 4K bits | Atmel | ISO7816 |
AT88SC0808C | 8K bits | Atmel | ISO7816 |
AT88SC1616C | 16K bits | Atmel | ISO7816 |
AT88SC3216C | 32K bits | Atmel | ISO7816 |
AT88SC6416C | 64K bits | Atmel | ISO7816 |
AT88SC12816C | 128K bits | Atmel | ISO7816 |
AT88SC25616C | 256K bits | Atmel | ISO7816 |
AT88SC1604 | 16K bits | Atmel | ISO7816 |
AT88SC1604B | 16K bits | Atmel | ISO7816 |
AT88SC1608 | 16K bits | Atmel | ISO7816 |
GT24C08 | 8K bits | ISSI/GT | ISO7816 |
IS24C16 / GT24C16 | 16K bits | ISSI/GT | ISO7816 |
IS24C32 / GT24C32 | 32K bits | ISSI/GT | ISO7816 |
IS24C64 / GT24C64 | 64K bits | ISSI/GT | ISO7816 |
IS24C128 / GT24C128 | 128K bits | ISSI/GT | ISO7816 |
IS24C256 / GT24C256 | 256K bits | ISSI/GT | ISO7816 |
IS24C512 / GT24C512 | 512K bits | ISSI/GT | ISO7816 |
Package
To make sure cards can be delivered without any damage,we provide the most solid and the safest packaging.
Dimensions of the inner box:
Description | Size | Quantity |
Inner box | 215*100*62mm | 200pcs |
Dimensions of the Outer Carton:
Description | Size | Quantity | Net weight | Gross weight |
Outer Carton | 245*215*190mm | 1000pcs | 6.00kgs | 6.50kgs |
Outer Carton | 520*225*145mm | 2000pcs | 13.00kgs | 13.50kgs |
Outer Carton | 520*225*260mm | 4000pcs | 24.00kgs | 27.00kgs |
Outer Carton | 520*225*325mm | 5000pcs | 30.00kgs | 32.00kgs |
