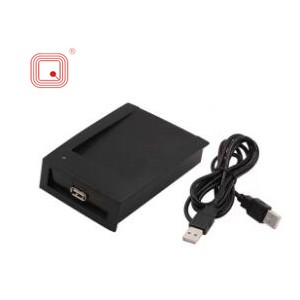

Product name: T5577 Contactless Card Reader
Model No. : RW-01
Frequency：125KHz
Size: 110x80x25mm
Reading EM4305 T5577 Contactless Card
125KHz T5577 Contactless Card Reader
Product Description
RW--01 supports T5577/EM4305 protocol card read&write function. It also can use for duplicating T5577,EM4305 card.
Capability specifications
| Model number | RW-01 |
| Name | EM4305/T5577 Reader&Writer |
| Dimension | 110x80x25mm |
| Reader colour | Black |
| Support | T5577,EM4305 |
| Frequency | 125KHz |
| Reader time | <0.5s |
| Baud Rate | 9600Kbit/s |
| Power Supply | +5V DC |
| Consumed Current | 100mA |
| Operating Distance | 0~120mm |
| Interface | USB(Visual serial port) |
| Status Indication | 1pcs LED;1pcd buzzer |
| Service Temperature | -20℃ ~ +80℃ |
| Store Temperature | -10℃ ~ +70℃ |

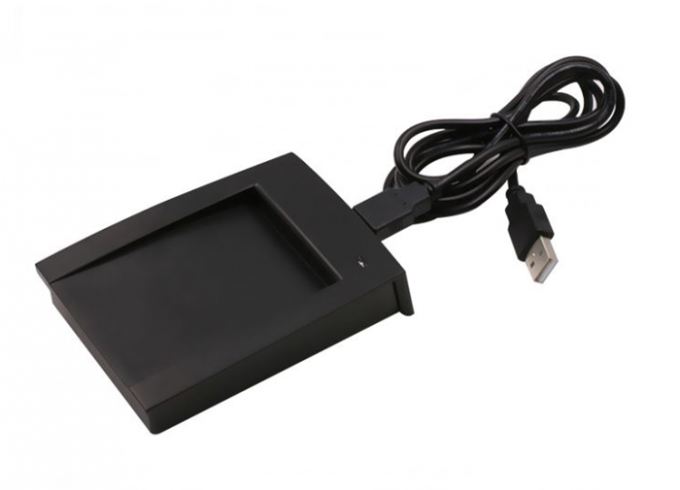

Detailed image
We are one of the leading em4305 or t5577 card reader and writer manufacturers and suppliers in China, welcome to wholesale newest, low price and high-quality em4305 or t5577 card reader and writer from us.
