Product name: Desktop EM Card Reader with USB Interface
Model No. : RW-02
Frequency：125KHz / 134.2KHz
Size: 94 x 60 x10 mm
Reading EM4100, EM4200, TK4100, T5577, EM4305
USB 125KHz desktop reader writer for TK4100/EM4100/EM4200/EM4305/T5577
Description
RW--02 is USB desktop 125khz RFID reader/writer.
It can support Write/Copy EM4305,ATAT5577, T5557, T5567,CET5200 or compatible cards/tags.
It can support Read EM 4001,EM4200 or compatible cards/tags.
Features
Fast in reading the RFID Tags
Connects to PC to read the RFID tags and update to the application
Could Read and Write and copy/duplicate ID cards and re-use
Capability specifications
Support | EM4100, EM4200, TK4100, T5577, EM4305 | ||
| Operating System | Windows98, XP7, LIUNX, Android | ||
| Frequency | 125Khz | ||
| Reading Distance | 0-80mm | ||
| Interface | USB (RS232 is optional) | ||
| Size | 94MM×60MM×10MM | ||
| Weight | 100G | ||
| Operating Humidity | -20 ℃~85℃ | ||
| Operating Temperature | 5%~95% | ||
| Power Supply | 5V | ||
| Display | Two LED indicators (Red For Mains ,Green For Status ) | ||
| Remark | With Buzzer | ||
| Read ID Numbers | 10 Numbers (18 numbers is optional) | ||

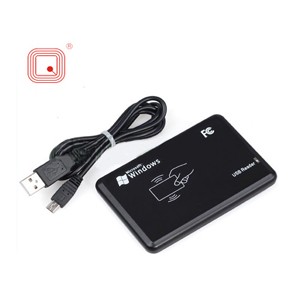

Detailed image
