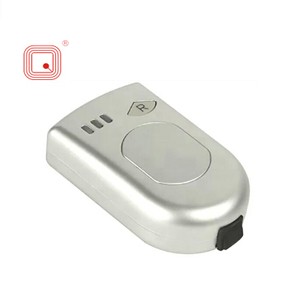

RFID LF Bluetooth Reader

125KHz 134.2KHz RFID LF Bluetooth Reader For Security Patrol

Description:

The wireless LF (125KHz/134.2KHz) Bluetooth based RFID device is compatible with most kinds of LF(125KHz/134.2KHz) cards. It uses Bluetooth (Class Two) technology to upload tags ID to bluetooth based computers/PDAs in a real-time mode. It is widely used in the industries of Farming, Cattle/Sheep Herding,Animal Tag Identification,security / Patrol / Mining / Finance and Railway system, etc.

Product model explanation

1.RW-07-125KHz   Bluetooth reader
2.RW-07-134.2KHz   Bluetooth reader

Features

• Wireless data transferring via the Bluetooth connection

• Can work with WinCE 5.0 or Windows Mobile 5.0/6.0 based SmartPhones or PDAs (Bluetooth featured).

• Palm sized

• Long battery life - continuously reads tags for up to 7000 times per charge

• Free SDK provided

• Excel/Word/Notepad keyboard wedge, data can be automatically updated and viewed in the real-time mode through any kind of text editors on PCs or PDAs

• The USB port could be used for charging or data transfer!

Specification

Application

• Farming, Cattle/Sheep Herding

• Animal Tag Identification

• EAS Systems

• Device Inspection: Industry Product Lines, Water Supply, Railway System, Coal Mining, etc..

• Vehicle Identification: Road Tolls, Parking Management

• Logistics Management, Warehouse Inventory

User Manual

Step one: install demo into Adroid mobile or tablet
Step two: turn on the reader, then search the Bluetooth and connect
Step three: after reading you can see the data in mobile.
