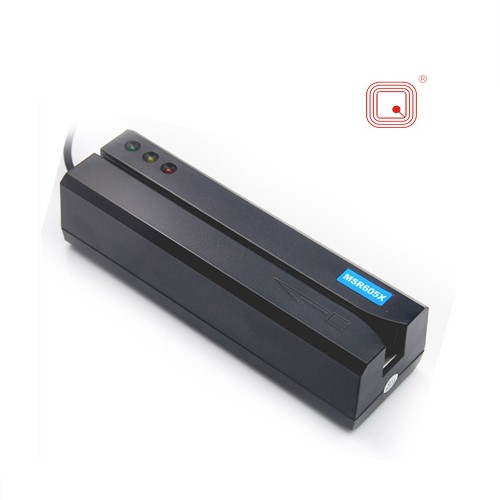

MSR605X Magnetic Card Reader Writer

MSR605X Magnetic Card Reader Writer

Powered by USB. Build-in Power adapter!

Full-Version: 3-Tracks, Hi-Co and Lo-Co,  Read/Write/Erase

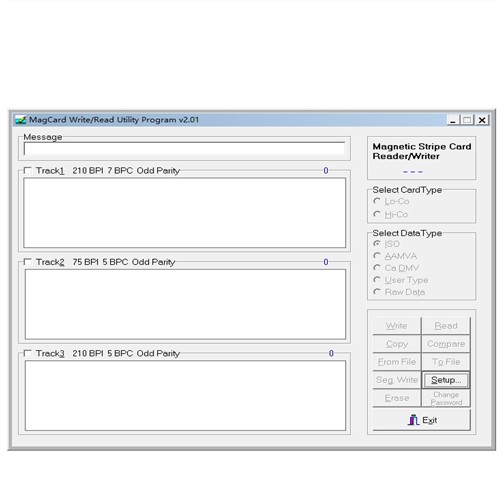

Software for both Windows OS and Mac OS.

MSR605X is a new model of magnetic stripe card reader writer.

Compared to the popular model MSR605, MSR605X doesn't require an external power adapter.

The communication with computer and the power supply are both done via one USB cord.

Feature:

1. Can simultaneously read and write multiple tracks (track 1, 2, 3), convenient and fast operation.
2. The read-write status has an indicator light and a buzzer to let you know if the read-write is successful.
3. Manual card swiping, support high and low speed card swiping.
4. Read and write multi standard cards directly, support for IBM, ISO, ANSI, DIN and other magnetic card and passbook, each rail can automatically identify for IBM and ISO format, no command control, can be used to switch write card format and the second track record density.
5. Provide a variety of demo drivers and for Windows environment secondary development environment, according to user requirements to develop a variety of different types of instruction set.
6. Adopt special anti - interference measure, suitable for all kinds of environment.

Specification:

Condition: 100% Brand New
Item Type: Card Reader
Color: Black
Model: MSR605X
Card Swiping Speed: 10 - 120cm/s
Reading and Writing Standards: ISO7810/7811
Read-Write Coerce Range: 300-4000 Oe Magnetic Card
Card Thickness: 0.76-1.2mm/0.03-0.05in
Record Density (Character) : Track 1:210BPI(76 Characters);Track 2:75BPI(Low Density 37 Characters)/210BPI(High Density 104 Characters);Track 3:210BPI(104 Characters)
Output Port: USB
Power Supply: DC5V USB Power Supply
Magnetic Head Life: > 800,000 Times
Power Supply: External Switching Power Supply, Input: 100-240 Volts Ac, Output :9 VDC 2a
Working Environment: Temperature -10℃ - 60℃, Humidity 10% - 85%RH
Repetition Rate: Read Card <1/1000, Write Card <1/100
Data Standard: for IBM/ISO/ANSI or DIN Standard

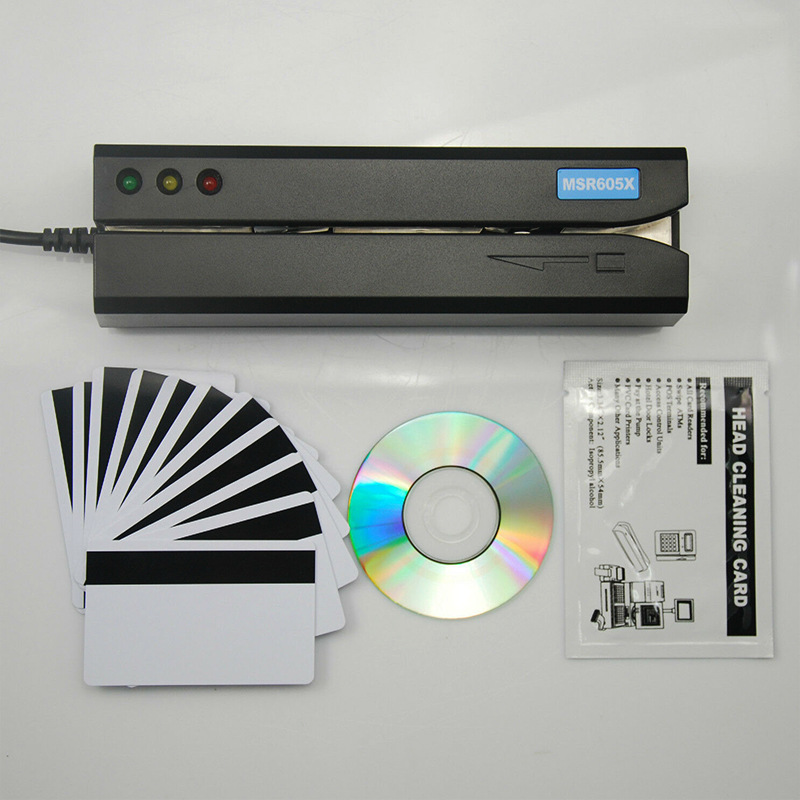

Package List:

1 x Magnetic Stripe Reader

10 x Magnetic Card

1 x Remove Card

1 x Software CD

MSR605X Magnetic Card Reader Writer For Hi&Lo Co Track 1, 2 & 3
