Mifare card Reader with Multiple Output format

Product name: Mifare card Reader with Multiple Output format
Model No. : RW-010
Frequency：13.56MHz

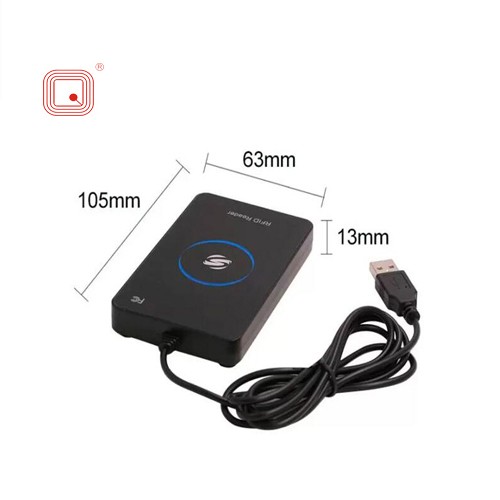

Size: 105x63x13 mm
Reading Mifare Card/lable/tag

USB Interface 13.56MHz HF IC card Reader/Mifare card Reader with Multiple Output format

Description:

RW-10 is ISO 14443A protocol and contactless desktop reader without diver, using lamp and acrylic panel design, it’s more beautiful and unique. Reader distance up to 80mm, it’s not only simple aspect, but also stable and reliable data. Widely used for RFID Radio Frequency Identification system and project, Such as Automated parking management system, Personal identification, Access controller, Production Access control, etc

Detailed image

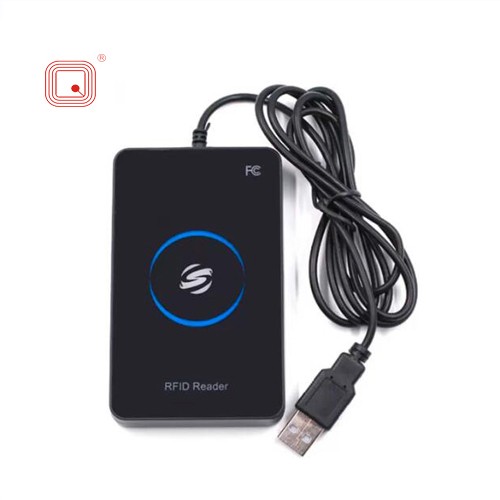

Multiple Output USB Interface 13.56MHz HF IC card Reader 1

Method of installation and use

1. Connect with computer through USB interface directly. When the buzzer sounded, reader into the self-inspection. And the same time, LED turn into Blue means standby.

2. Open the output of computer software,such as Notepada word document or Excel sheets.

3. The mouse in Notepad or WORD document clicking.

4. Put tag on the top of reader, the software will output a data(card number) of the tag. When reading the tag, LED light change from Blue to green.

Detecting device is connected

Open the Device Manager of computer, If appears Humans Input Device that means Reader has successfully into computer.

Multiple Output USB Interface 13.56MHz HF IC card Reader 2
