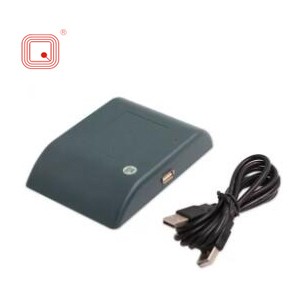

Product name: Mifare card Reader
Model No. : RW-08
Frequency：13.56MHz
Size: 125x92x24 mm
Reading mifare cards / labels
13.56MHz HFreader for MF S50 / S70 / F1108 card
Description:
RW-08 series It's a high performance, lower price 13.56MHz RFID reader, reader distance up to 10cm, widely used for RFID Radio Frequency Identification system and project, such as Automated parking management system, Personal identification, Access controller, Production Access control, etc
Product model explanation
| Model | output Byte | output format | interface | support |
| RW-08-A | 4 | 8 digit Hex | USB | Mifare S50 S70 F1108,etc. |
| RW-08-B | 4 | 10 digit Dec | USB | Mifare S50 S70 F1108,etc. |
Specification
| Name | Mifare card Reader |
| Dimension | |
| Reader colour | Blue |
| Support | Mifare one S50,S70,F1108 |
| Frequency | 13.56MHz |
| Reader time | <0.5s |
| Baud Rate | 9600 |
| Power Supply | +5V DC |
| Consumed Current | 70mA |
| Operating Distance | 0~120mm |
| Interface | USB |
| Status Indication | 1pcs LED;1pcd buzzer |
| Service Temperature | -10℃ ~ +70℃ |
| Store Temperature | -20℃ ~ +80℃ |
Instructions for use:
If it is USB interface
1, reader connect the computer with USB cable
2. Open Notepad or a word document
3. The mouse in Notepad or WORD document clicking
4. put card on the top of reader.
5. Notepad or word documents will output of the IC card number
6. When Reading one card, the reader is prompted to voice, LED lights with red into the green
Pasckage
1 pcs/box,box size:150*110*50 mm
