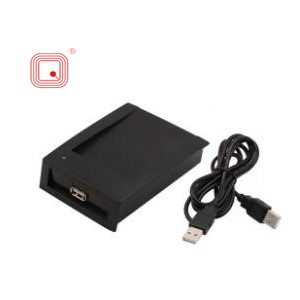

Product name: Hitag Card Reader & Writer
Model No. :RW-06
Frequency：125 KHz/134.2Khz
Size: 110x75x25mm
Support Hitag1/2/Hitag s 256/Hitags 2048 chip tag
Description:
RW--06 can support Hitag1/2/Hitag s 256/Hitags 2048 chip tag. With USB interface, before use it need install the USB driver
The Hitag2/S reader writer can be widely used for animal husbandry, aquaculture, pet management, animal hospital management.
Specification
| Type | RW-06 card reader writer |
| Support chip | Hitag2, Hitag S |
| Frequency | 125 KHz/134.2Khz |
| Baud rate | 9600bit/s |
| Power supply | DC 5V(±5%) |
| working current | 50mA |
| Read range | 5cm |
| Color | black |
| Interface | USB |
| Working indicator | 1pc LED the double color indicating ,1pc buzzer |
| Working temperature | -10℃~ +70℃ |
| Storage temperature | -20℃ ~ +80℃ |
| Size | 110mmx75mmx25mm |
Noted:The reader come with SDK and demo software
Application
Access Control/Time Attendance
Production Authentication
Guest Registration System
System login/logoff
Returnable Transit Items
Logistic systems
Express parcel management
Ticketing smart label printer and encoder
Detailed image
Package
One piece in one box, 100 pieces in one carton
