AT24C02 Contact IC Card

Printable PVC AT24C02 Contact IC Cards For Thermal Printer

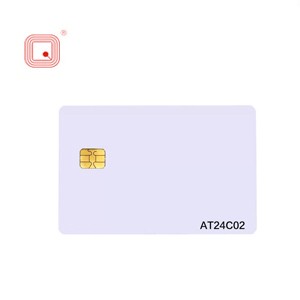

Blank White printable ISO 7816 PVC AT24C02 contact IC Cards For Thermal Printer

Description:

  The contact IC cards are named so because they come in contact with the reader. These smart cards are the size of a credit card. A metallic chip is embedded inside the plastic card with a microprocessor and a memory or only with a memory. The AT24C02 memory smart card is a card without encryption process. This card contain 2K-bits EEPROM memory size, R/W (non protected).The card is always ready for blank white or offset printing and silkscreen printing.The AT24C02 contact IC Cards widely used for Enterprises,transportation, insurance, super market, parking, school, access control, hospital, telecom ect.

Chip Parameter:

Key features:

• Contact interface

• Low-voltage and Standard-voltage Operation

• Internally Organized 256 x 8 (2K)

• Two-wire Serial Interface

• Schmitt Trigger, Filtered Inputs for Noise Suppression

• Bidirectional Data Transfer Protocol

• 100 kHz (1.8V) and 400 kHz (2.7V, 5V) Compatibility

• Write Protect Pin for Hardware Data Protection

• 8-byte Page (21K) Write Modes

• Partial Page Writes Allowed

• Endurance: 1 Million Write Cycles

• Data Retention: 100 Years

• The AT24C02 provides 2048 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256 words of 8 bits each.
