AT24C16 Contact Card

Fitness System AT24C16 Chip Contact IC Memory Cards

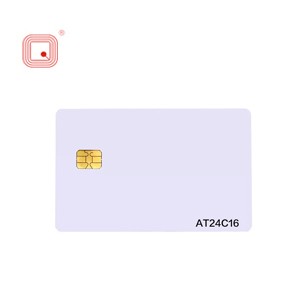

Blank white contact IC memory PVC cards with AT24C16 chip for fitness system

Description

The contact IC cards are named so because they come in contact with the reader. These smart cards are the size of a credit card. A metallic chip is embedded inside the plastic card with a microprocessor and a memory or only with a memory.The AT24C16 card provides 16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
The contact IC cards are widely used in network security, access control, e-commerce, electronic cash and as health cards.

Chip Parameters


Key features

• Contact interface

• Low-voltage and Standard-voltage Operation

• Internally Organized 2048 x 8 (16K)

• Two-wire Serial Interface

• Schmitt Trigger, Filtered Inputs for Noise Suppression

• Bidirectional Data Transfer Protocol

• 100 kHz (1.8V) and 400 kHz (2.7V, 5V) Compatibility

• Write Protect Pin for Hardware Data Protection

• 16-byte Page (16K) Write Modes

• Partial Page Writes Allowed

• Self-timed Write Cycle (5 ms max)

• Endurance: 1 Million Write Cycles

• 8-lead JEDEC PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2×3), 5-lead SOT23, 8-lead TSSOP and 8-ball dBGA2 Packages



Package

To make sure cards can be delivered without any damage,we provide the most solid and the safest packaging.
