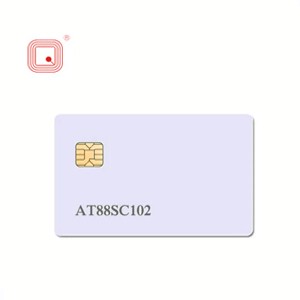

AT88SC102 Contact Card

Blank AT88SC102 Contact IC Cards For Medical Insurance

Pre printed / blank smart card with AT88SC102 chip for medical insurance

Description:

ISO7816 AT88SC102 Contact Card is a low-cost, synchronous, secure memory integrated card. It contains 1K-bit EEPROM memory size, R/W (PIN-code protection). It is original from Atmel.
The AT88SC102 provides 1024 bits of serial EEPROM within two Application Zones of 512 bits each, plus 64 bits in a Code Protected Zone, plus 64 bits in a code protected zone. Additional EEPROM memory and security logic provide security for smart card applications. Space is provided in the EEPROM memory for manufacturing records for both the smart card manufacturer and card issuer. After personalization, these records, and the state of the bit which enables the Erase Counter function, are locked and protected from modification for the lifetime of the product.
The AT88SC102 is manufactured using low-power CMOS technology and features its own internal high-voltage pump for single voltage supply operation. This smart card is guaranteed to 100,000 erase/write cycles and 100 year data retention and endurance up to one-million.

Product Specification:

• Dimensions: 85.6 x 54 mm or customized

• Thickness: 0.8 mm

• Material: PVC, PET, PETG, ABS etc for optional

• Surface: Lamination (Glossy, Matt, Frosted finished)

• Design: Customer provides high resolution artwork in AI, PSD,CDR, PDF format, or custom

• Printing Method: CMYK offset printing, silkscreen printing, laser printing, UV printing, thermal printing, inkjet, etc.

• Personalization: Logo printing, Numbering, QR code, Barcode, ID photo, etc.

• Available crafts: Magnetic stripe, Signature panel, Laser engraving, Embossing, Hole punched, etc.

 Chip Parameters:

• 1K X 1 Serial EEPROM with Security Logic

• Two Application Zones

• Stores and Validates Security Codes

• Maximum of Eight Incorrect Security Code Attempts

• Provides Transport Code Security

• Low Voltage Operation: 2.7V to 5.5V

• Manufactured using Low Power CMOS Technology

• Supports ISO/IEC 7816-3 Synchronous Protocol

• VPP Internally Generated

• 2 μs Read Access Time; 2 ms Write Cycle Time

• Temperature Range from -40°C to 85°C

• ESD Protection 4,000V Minimum.

• 100,000 Program/Erase Cycles Guaranteed

• Data Retention of 10 years

Applications:

Hotel Key Card, Medical insurance, Highway charge, Electronic purse, Data storage, Internet cafe charge
