AT24C128 Contact Card

White PVC PET PETG AT24C128 Chip Contact IC Cards

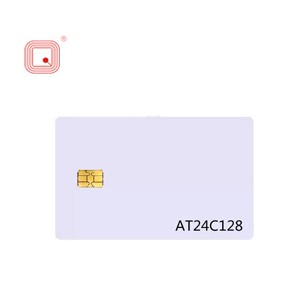

PVC pre printed / blank contact IC chip card with AT24C128 chip

Description:

The AT24C128B provides 131,072 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 16,384 words of 8 bits each. The device’s cascadable feature allows up to eight devices to share a common two-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The devices are available in space-saving 8-lead JEDEC PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini MAP, 8-lead Ultra Lead Frame Land Grid Array (ULA), 8-lead TSSOP, and 8-ball dBGA2 packages. In addition, the entire family is available in a 1.8V (5.5V to 3.6V) version.
We supply blank AT24C128 cards and AT24C128 pre-printed cards for your option.

Product Specification:

• Dimensions: 85.6 x 54 mm or customized

• Thickness: 0.8 mm

• Material: PVC, PET, PETG, ABS etc for optional

• Surface: Lamination (Glossy, Matt, Frosted finished)

• Design: Customer provides high resolution artwork in AI, PSD,CDR, PDF format, or custom

• Printing Method: CMYK offset printing, silkscreen printing, laser printing, UV printing, thermal printing, inkjet, etc.

• Personalization: Logo printing, Numbering, QR code, Barcode, ID photo, etc.

• Available crafts: Magnetic stripe, Signature panel, Laser engraving, Embossing, Hole punched, etc.

 Chip Parameters:

• Low-voltage and Standard-voltage Operation

          – 1.8 (VCC = 1.8V to 5.5V)

• Internally Organized as 16,384 x 8

• Two-wire Serial Interface

• Schmitt Trigger, Filtered Inputs for Noise Suppression

• Bidirectional Data Transfer Protocol

• 1 MHz (5.5V, 2.5V), and 400 kHz (1.8V) Compatibility

• Write Protect Pin for Hardware and Software Data Protection

• 64-byte Page Write Mode (Partial Page Writes Allowed)

• Self-timed Write Cycle (5 ms Max)

• High Reliability

         – Endurance: One Million Write Cycles
         – Data Retention: 40 Years

• Lead-free/Halogen-free

• 8-lead JEDEC PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini MAP, 8-lead Ultra Lead Frame Land Grid Array (ULA), 8-lead TSSOP, and 8-ball dBGA2 Packages

• Die Sales: Wafer Form, Tape and Reel and Bumped Wafers

AT24C Series Card

AT24C Series Card includes a series of chips:
AT24C01, AT24C02, AT24C04, AT24C16, AT24C32,AT24C64,AT24C128,AT24C256,AT24C512,AT24C1024.

This AT24C** device is optimized for use in many industrial and commercial applications.
AT24C01 is original from Atmel.

About the IC module:
AT24C01 provides 1-K bits EEPROM, organized as 128 words of 8 bits each.(128 x 8 )
AT24C02 provides 2-Wire serial EEPROM 2K bits.
AT24C04 provides 2-wire serial EEPROM 4K bits.
AT24C16 provides 2-wire serial EEPROM 16K bits.
AT24C64 provides 2-wire serial EEPROM 64K bits.
AT24C128 provides 2-wire serial EEPROM 128K bits.
AT24C256 provides 2-wire serial EEPROM 256K bits.
AT24C512 provides 2-wire serial EEPROM 512K bits.
AT24C1024 provides 2-wire serial EEPROM 1024K bits.

- EEPROM Endurance minimum 100, 000 erase / write cycles
- Minimum of 10 years data storage time
- Contact confguration and serial interface in accordance to ISO standard 7816

Package:

To make sure cards can be delivered without any damage,we provide the most solid and the safest packaging.
