AT24C1024 Contact Card

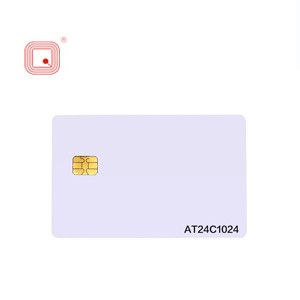

Industrial Commercial Blank AT24C1024 Contact Smart Card

PVC / PET white / blank smart card with AT24C1024 chip for commercial

Description:

Contact smart cards are the size of a conventional credit card with a single embedded integrated circuit chip. The AT24C1024B provides 1,048,576 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 131,072 words of 8 bits each. The device’s cascadable feature allows up to four devices to share a common two-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The devices are available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, 8-ball dBGA2 and 8-lead Ultra Thin SAP packages. In addition, the entire family is available in 1.8V (1.8V to 3.6V) and 2.5V (2.5V to 5.5V) versions.
We supply blank AT24C1024 cards and AT24C1024 pre-printed cards for you.For more information about these cards please contact us.

Product Specification:

• Card size: 85.5*54*0.8 mm (standard), or according to your request.

• Material: PVC, PET, ABS etc for optional

• Surface: Glossy/Matte/Frosted/Transparent

• Color:White / pre printed

• Design: Customer provides high resolution artwork in AI, PSD,CDR, PDF format, or custom

• Printing Method: CMYK offset printing, silkscreen printing, laser printing, UV printing, thermal printing, inkjet, etc.

• Personalization: Logo printing, Numbering, QR code, Barcode, ID photo, etc.

• Features:Water-proof,high temperature resistance

• Available crafts: Magnetic stripe, Signature panel, Laser engraving, Embossing, Hole punched, etc.

 Chip Parameters:

• Low-voltage Operation

         – 1.8V (VCC = 1.8V to 3.6V)
         – 2.5V (VCC = 2.5V to 5.5V)

• Internally Organized 131,072 x 8

• Two-wire Serial Interface

• Schmitt Triggers, Filtered Inputs for Noise Suppression

• Bidirectional Data Transfer Protocol

• 400 kHz (1.8V) and 1 MHz (5V, 2.5V) Clock Rate

• Write Protect Pin for Hardware and Software Data Protection

• 256-byte Page Write Mode (Partial Page Writes Allowed)

• Random and Sequential Read Modes

• Self-timed Write Cycle (5 ms Typical)

• High Reliability

         – Endurance: 1,000,000 Write Cycles/Page
         – Data Retention: 40 Years

• 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, 8-lead Ultra Thin Small Array (SAP), and 8-ball dBGA2 Packages

• Die Sales: Wafer Form, Tape and Reel and Bumped Die

• Operating Temperature:55°C to +125°C

• Storage Temperature :–65°C to +150°C

AT24C Series Card

AT24C Series Card includes a series of chips:
AT24C01, AT24C02, AT24C04, AT24C16, AT24C32,AT24C64,AT24C128,AT24C256,AT24C512,AT24C1024.

This AT24C** device is optimized for use in many industrial and commercial applications.
AT24C01 is original from Atmel.

About the IC module:
AT24C01 provides 1-K bits EEPROM, organized as 128 words of 8 bits each.(128 x 8 )
AT24C02 provides 2-Wire serial EEPROM 2K bits.
AT24C04 provides 2-wire serial EEPROM 4K bits.
AT24C16 provides 2-wire serial EEPROM 16K bits.
AT24C64 provides 2-wire serial EEPROM 64K bits.
AT24C128 provides 2-wire serial EEPROM 128K bits.
AT24C256 provides 2-wire serial EEPROM 256K bits.
AT24C512 provides 2-wire serial EEPROM 512K bits.
AT24C1024 provides 2-wire serial EEPROM 1024K bits.

- EEPROM Endurance minimum 100, 000 erase / write cycles
- Minimum of 10 years data storage time
- Contact confguration and serial interface in accordance to ISO standard 7816

Package:

To make sure cards can be delivered without any damage,we provide the most solid and the safest packaging.
